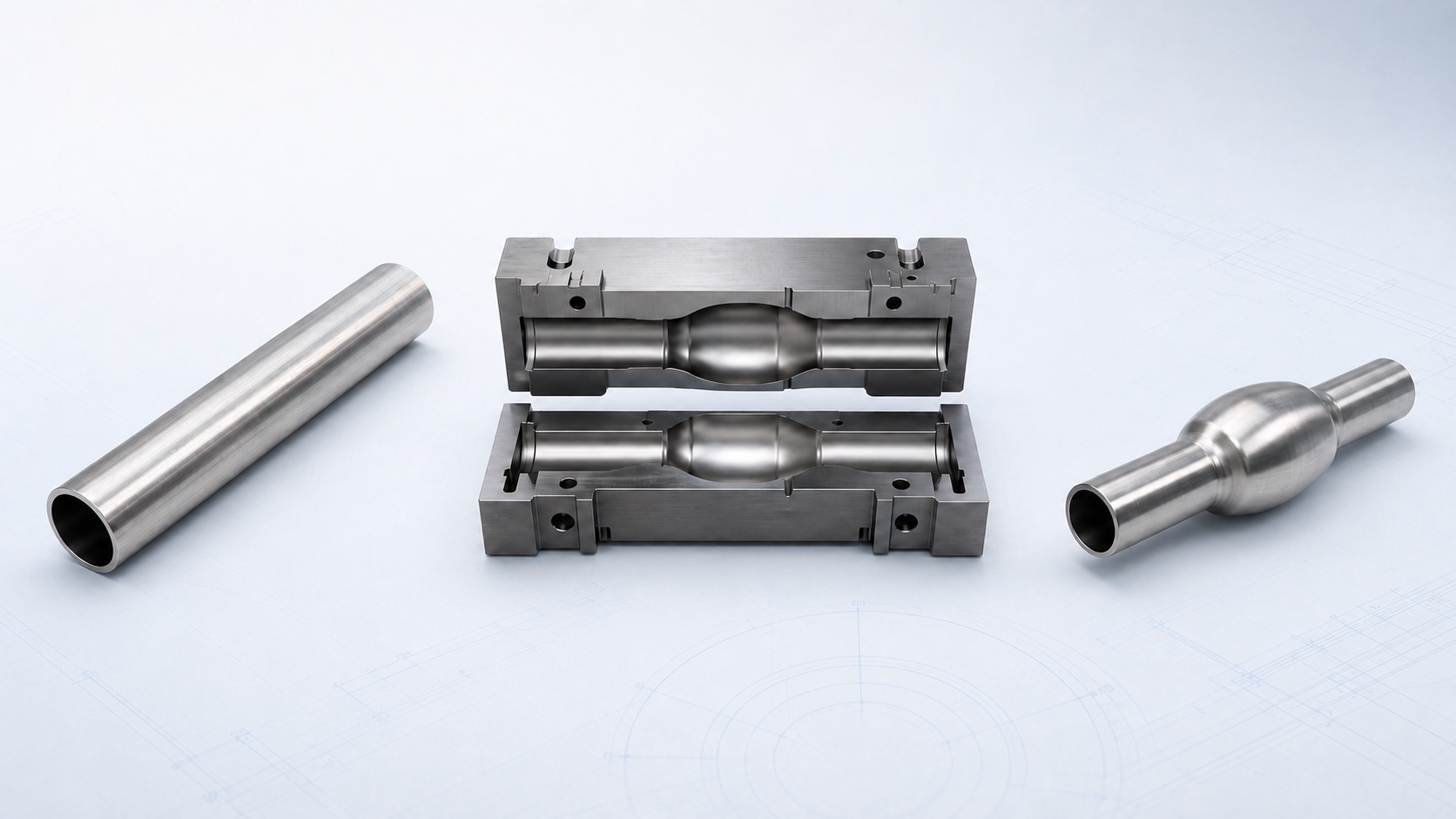

Custom Tube Hydroforming
ShuiYiYuan supports custom parts from drawing and process-route review through hydroforming die development, tryout, sample confirmation, and repeat production. Projects with an existing die or mature route can also enter as contract hydroforming work.
Every quotation defines the incoming condition, ShuiYiYuan’s operations, the sample-confirmation scope, and the delivered condition.
Service scope
Tube hydroforming is the core operation. A project can cover one defined stage or connect die development, prototype parts, and subsequent production.
When the requirement is to establish hydroforming capability at the customer’s own plant, ShuiYiYuan can also develop project-specific hydroforming equipment and tooling.
Development begins with the target component, tube condition, and forming route. The review identifies major section changes, local expansion zones, end conditions, part removal, and the locations that need confirmation during tryout.
The agreed scope states whether the customer supplies straight tube, a preformed tube, a semi-finished part, or another confirmed incoming condition. It also states the exact condition in which the hydroformed part leaves ShuiYiYuan.
A new die moves from design intent to a physical component during tryout. Sample parts confirm the agreed geometry and interfaces and establish which conditions must be fixed before repeat production.
Customers building their own hydroforming production station can define a separate package for equipment, dies, and related tooling. The delivered equipment scope and site conditions are confirmed during development.
When ShuiYiYuan supports the die, samples, and subsequent production, the conditions established in one stage become the basis for the next. Later changes are reviewed for their effect on the tooling and forming route.
Defined delivery
Hydroforming is normally one operation within a longer manufacturing process. Before quotation, the project record states what the customer supplies, what ShuiYiYuan performs, and the condition of the part when it leaves for the next operation.
Confirm the drawing revision, material and tube state, and completed upstream work.
Define die development, tryout and samples, and contract tube hydroforming.
Record the delivered part state, quantity and sample records, and the next-process interface.
Project route
The route connects design information, die development, physical samples, and the conditions used for subsequent production.
Drawing, model, material, tube condition, and expected quantity.
Confirm the geometry, interfaces, incoming condition, and condition required at delivery.
Complete the tool concept, manufacture, and tryout preparation.
Use physical parts to complete the agreed confirmation.
Use the confirmed revision, inputs, part state, and quantity plan.
A 2D drawing, 3D model, sample images, material, and quantity information identify the target geometry, important interfaces, and current design status. Fixed and adjustable regions can be recorded separately.
The review considers how the tube reaches the target shape and whether the ends, section changes, local features, part removal, or supporting operations create conflicts.
After die manufacture, tryout establishes physical forming conditions. The sample is used to confirm the drawing and project objective, including any customer-run assembly or functional test.
Later lots use the released drawing, material, starting tube, and process conditions. Any change that affects forming or delivery is reviewed separately from routine production.
Part fit
Hydroforming becomes relevant when a closed tube blank has to form a more complex hollow shape. The component name alone does not establish process suitability.
Several cross-section transitions appear along one continuous tube.
A controlled bulged region is formed within a tubular component.
The tube moves from round to oval, rectangular, or another target section.
Several geometric or functional regions are combined in one hollow component.
Suitability depends on the target geometry, specified material, starting tube, production quantity, and every operation before and after forming. A constant-section straight tube, or a part that only needs conventional bending, usually does not justify a hydroforming tool.
Material scope
Grades and conditions within one material family can behave differently. Project conclusions are based on the specified material, starting tube, and part geometry.
| Material | Basic project conditions considered |
|---|---|
| Q235B carbon steel | Material condition, starting tube, section change, and target structure. |
| Stainless steel | Grade and condition, tube state, local features, and delivered requirements. |
| Aluminum alloy | Specific grade and temper, target shape, material flow, and tryout validation. |
| High-strength steel | Strength grade, tube and seam condition, local deformation, and critical structural zones. |
Swipe horizontally to view the complete table.
Applications
If you are developing an exhaust pipe, chassis component, body structure, seat frame, or instrument-panel crossmember, send us the drawing, material specification, and expected quantity. We will assess whether tube hydroforming is suitable and define the next step for die development, tryout parts, or repeat production.
Stainless-steel press-fit pipes, liquid-cooling manifolds, and internal server cooling lines with local expansions or shaped hollow sections can also be submitted for review. Include the incoming tube condition, critical dimensions, and delivery requirements; other manufacturing, connection, testing, or system-validation work will be confirmed separately before quotation.
Supporting work
Deep drawing and laser cutting are available when they support a hydroforming requirement. Assembly and other value-added work are defined for the specific component rather than assumed in every quotation.
Used for associated formed metal structures when the confirmed component route requires it.
Used for agreed contours, holes, or trim work in the sequence defined for the part.
Assembly and value-added support are included only after the delivered condition and responsibility are confirmed.
Confirmation and delivery
The sample stage establishes what the physical part must confirm. Production then follows the released version and agreed input and delivery conditions.
The agreed scope can cover outer shape, critical dimensions, interfaces, assembly locations, or customer functional testing. Customer-supplied material and semi-finished conditions also form part of the sample result.
After production release, ShuiYiYuan performs hydroforming against the confirmed version and delivered conditions. Prototype work, recurring parts, and later engineering changes remain separate activities.
Related technical resources
The service page defines what ShuiYiYuan can take on. The Resources articles explain the engineering and quotation questions in greater depth.
How die development, tryout samples, recurring processing, material, quantity, and delivered scope shape a quotation.
What to confirm about geometry, material, the starting tube, critical interfaces, and delivery requirements before tooling.
Start a project
ShuiYiYuan will first identify whether the immediate stage is drawing review, die development, tryout samples, equipment and tooling customization, or repeat contract manufacturing. The response can then define the service scope, open interfaces, and the next deliverable.
