Hydroforming for liquid cooling components
ShuiYiYuan supports build-to-print hydroforming work for stainless steel press-fit pipe components, stainless steel or copper manifold components, and stainless steel tubing used inside liquid-cooled servers.
ShuiYiYuan supplies the hydroformed component or tube section and can support tooling, tryout, and repeat production. It is not a complete liquid-cooling-system supplier; complete piping systems, CDUs, cold plates, connectors, and on-site integration are outside this service.
Component families
ShuiYiYuan has production or delivery experience with all three component families. Send your drawing or sample to review the hydroformed features, tooling, tryout, and repeat-production requirements. The images below are engineering illustrations.

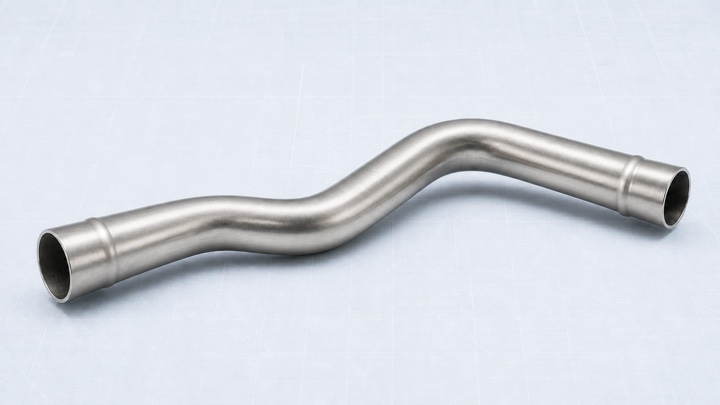

Tube sections can be reviewed where the drawing requires a local diameter change, section transition, or formed interface. Press connection assembly, seals, tools, and the complete piping system are not included automatically.

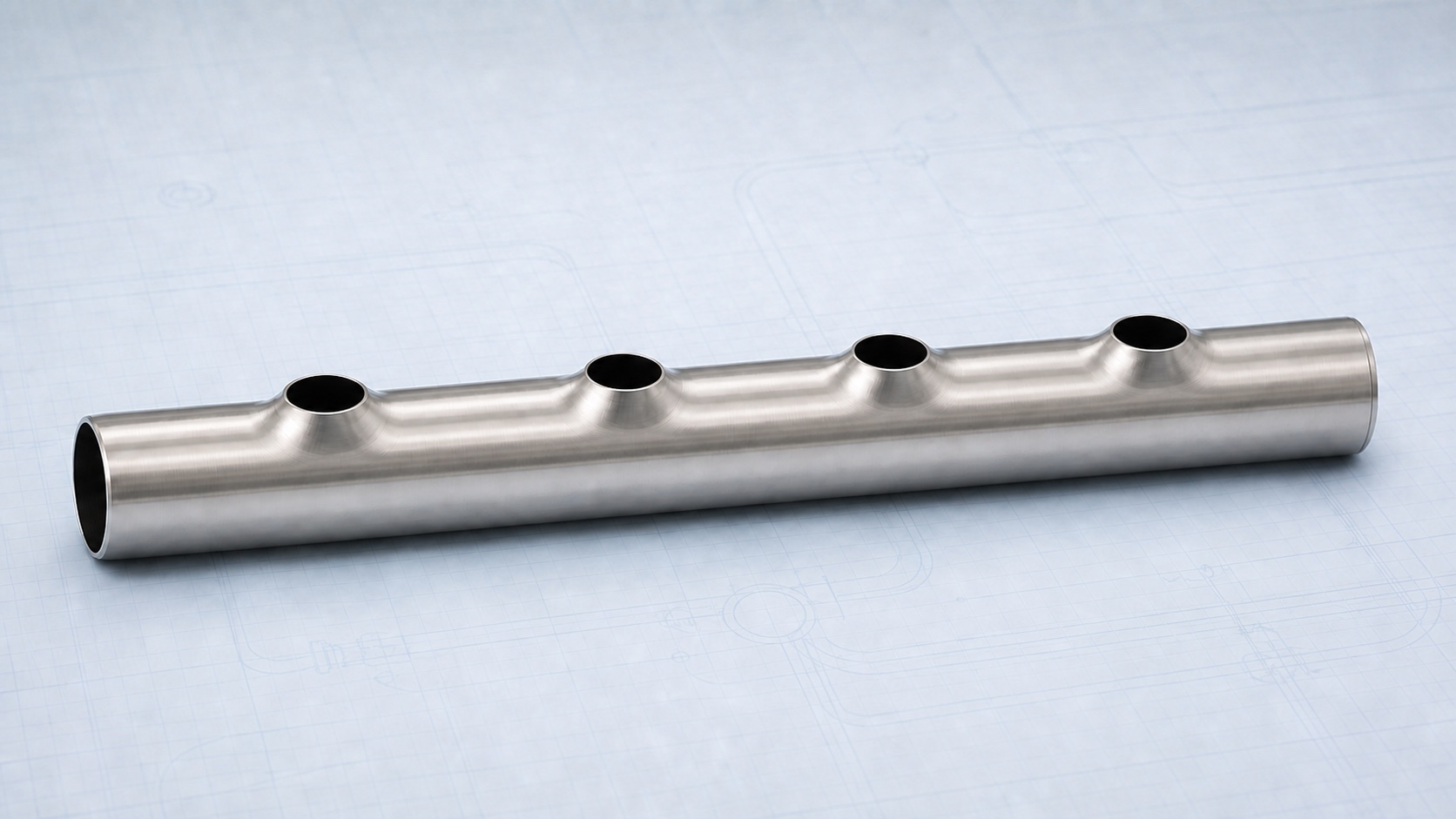

Stainless steel or copper hollow parts can be reviewed where local expansion, section change, or interface geometry may be suited to hydroforming. Port joining, welded assemblies, and flow-system design are separate scope decisions.

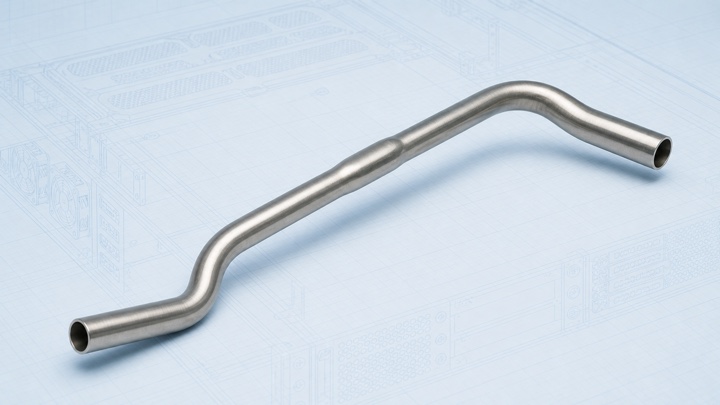

Metal tube sections used inside a server chassis or cold-plate loop can be reviewed around a controlled local section transition and the required interfaces. Final routing, connectors, and server assembly follow the customer drawing.
Division of work
You provide the drawing, material, incoming condition, and the condition required at delivery. ShuiYiYuan quotes the hydroforming work, tooling, samples, and any confirmed supporting operations—not the complete cooling system.
Send the current drawing, material, starting tube or preform, critical interfaces, quantity, required condition at delivery, and any request for a forming-cycle pressure hold and obvious-leak observation.
ShuiYiYuan completes the quoted route review, die development, tryout, hydroforming work, sample parts, and repeat production.
Receive the formed core, an agreed post-processed part, confirmed samples, or repeat parts made against the released drawing revision.
Engineering review
The review connects the required hydroformed geometry with the material, starting tube, interfaces, quantity, and any request for a forming-cycle pressure hold and obvious-leak observation.
Identify the local expansion, section change, or other hollow feature that the forming operation must create.
ShuiYiYuan’s current hydroforming capability covers starting tubes and blanks with wall thicknesses from 2 to 6 mm, inclusive. The specified grade, material condition, tube dimensions, seam condition, and any preforming are reviewed with the part geometry.
Show press-fit zones, port locations, trim, later connections, and the required incoming and delivered conditions on the drawing.
Sample quantity, expected repeat volume, and any agreed forming-cycle pressure hold with obvious-leak observation shape the tryout and production plan.
Samples, production, and process checks
Tryout samples confirm the agreed part state and interfaces, while repeat production follows the released drawing and input condition. Hydroforming fills and pressurizes the blank inside a closed die; the forming cycle can include an agreed hold only for observation of obvious leakage.
Tryout parts confirm the agreed shape, critical dimensions, interfaces, and delivery scope. Repeat production uses the released drawing and confirmed input condition.

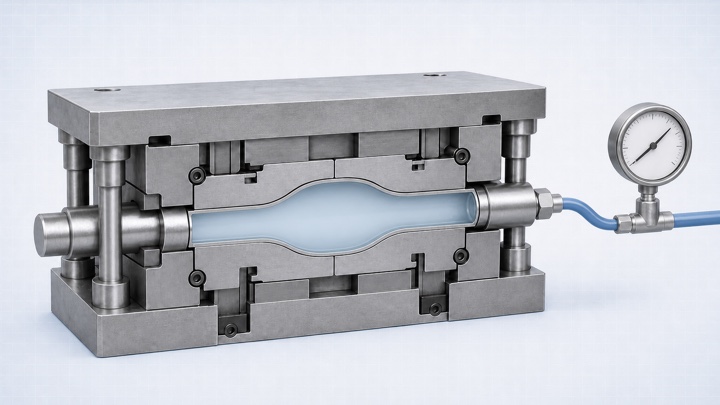

During hydroforming, liquid pressure expands the sealed blank against the closed die. When agreed, the cycle can include a hold and observation for obvious leakage. ShuiYiYuan does not provide independent finished-product hydrostatic testing, rated-pressure verification, quantified leak-rate testing, or system certification.
Related services and RFQ guides
These pages explain the core hydroforming service and the information that normally enters an early engineering and quotation review.
Tooling, tryout parts, contract hydroforming, equipment and tooling support, and repeat production.
GUIDE 01What to confirm about geometry, material, the starting tube, interfaces, and delivery requirements before tooling.
GUIDE 02How tooling, sample work, recurring processing, material, quantity, and delivery scope shape a quotation.
Start a liquid cooling component project
ShuiYiYuan reviews the target geometry, material, starting tube, interfaces, quantity, delivered condition, and any request for a forming-cycle pressure hold with obvious-leak observation before defining tooling, samples, or repeat production.
